Spektrofotometer UV-Vis

Merek	:	Shimadzu
Seri	:	UV−1900i
Dimension	:	450 × 501 × 244 mm
Bobot	:	16,6 kg
Environmental Requirements	:	Temperature: 15°C to 35°C; Humidity: 30% to 80%
Power Requirements	:	AC 220 V, 50/60 Hz, 140 VA
Wavelength Range	:	190−1100 nm
Spectral bandwith	:	1 nm
Photometric System	:	Double beam optics
Wavelength scanning speed	:	29000 nm per menit
Light source	:	20 W Halogen lamp and deuterium lamp



Rotary Evaporator

Merek	:	Buchi
Seri	:	R−100
Dimensi (P × L × T)	:	617 × 898 × 5012 mm
Bobot	:	18-19 Kg
Operation Voltage	:	24 V
Frequency	:	DC
Power Consumption	:	30 W
Immersion angle adjustable	:	0−35°
Stroke distance	:	150 mm (+100 mm extendable)
Rotation speed	:	20−280 rpm
Kapasitas Maksimal Flask	:	3 kg

Heating Bath

Merek	:	Buchi
Seri	:	B−100
Dimensi (P × L × T)	:	307 × 202 × 275 mm
Bobot	:	4,0 kg
Operation Voltage	:	220−240 V
Frequency	:	50/60 Hz
Power Consumption	:	1700 W
Flask size range	:	50−4000 mL
Heating Power	:	1300 W
Controlled temperatur range	:	20−95 °C
Maximum Flask size	:	4000 mL
Temperatur regulation accuracy	:	± 2 °C
Heating media	:	Water

Vacuum Pump

Merek	:	Buchi
Seri	:	V−100
Dimensi (P × L × T)	:	180 × 275 × 210 mm
Bobot	:	5,6 kg
Suction capacity	:	1,5 m3/h
Final vacuum (absolute)	:	10 ± 2 mbar
Power consumption	:	150 W
Electrical requirements	:	100−240 V/50−60 Hz
Nominal speed	:	max 1280 rpm
Sound level	:	32−52 dBA
Material in contact	:	PTFE (Polytetrafluoroethylene), FEP (Fluorinated ethylene propylene), FFKM (perfluorinated rubber), PPS (Polyphenylene sulphide)

Interface

Merek	:	Buchi
Seri	:	I−100
Dimensi (P × L × T)	:	160 × 105 × 120 mm
Power consumption	:	40 W
Electrical requirements	:	100−240 V/50−60 Hz
Measurement range	:	1400−1 mbar
Measurement accuracy	:	± 2 mbar

Recirculating Chiller

Merek	:	Buchi
Seri	:	F−100
Dimensi (P × L × T)	:	280 × 500 × 400 mm
Bobot	:	29 kg
Cooling at 10°C	:	300 W
Temperature range	:	fix 10°C
Recommended working range	:	10°C
Power Consumption	:	850 W
Supply Voltage	:	230 V (+/- 10%) 50/60 Hz
Ambient temperature	:	5−35°C
Refrigerant	:	R134a
Temperature regulation accuracy	:	± 2 °C
Tank volume	:	3 L
Tubing connection	:	8 mm (GL14)
Pump pressure	:	0,6 bar
Flowrate	:	2,5 L/minute



Incubator

Merk	:	Memmert
Model	:	IN55
Capacity	:	53 L
Weight	:	57 kg
Dimensi (P × L × T)	:	585 × 784 × 514 (plus 56mm door handle)
Voltage	:	230 V, 50/60 Hz
Setting Temperature Range	:	+20 to +80°C
Setting Accuracy Temperature	:	0,1°C



Natural Convection Oven

Merek	:	Lab Companion
Seri	:	M029088
Dimensi Interior (P × L × T)	:	375 × 370 × 370
Dimensi Eksterior (P × L × T)	:	530 × 535 × 737
Temperature Range	:	Amb. +15°C to 220°C
Timer	:	Min. 1min, max. 99hr 59min
Weight (net)	:	34kg
Chamber Volume	:	52 L
Supply Voltage	:	230 V AC/50 Hz



Neraca Analitik

Merek	:	Shimadzu
Seri	:	D307041485
Type	:	ATX224
Weight	:	15.000 gram
Maximum Capacity	:	220 g
Read Ability	:	0,1 mg
Waktu Stabilitas	:	3 sec



Autoclave

Merek	:	All American
Model	:	50X
Weight	:	13,2 kg
Kapasitas Kotor	:	24 L
Dimensi (P × L × T)	:	534 × 445 × 470 mm
Voltage	:	240 Volt/ 6,88 A/ 1650 W
Outside Diameter	:	324 mm



Centrifuge

Merek	:	Corona
Model	:	80−2
Weight	:	15.000 g
Dimensi (P × L × T)	:	280 × 240 × 260 mm
Voltage	:	220 VAC/50 Hz
Electrical Power	:	80 W
Speed Setting	:	0−4000 rpm
Timing	:	0−60 min
Capacity	:	12 × 20 mL



Melting Point Device

Merek	:	A & E Lab (UK)
Model	:	DMP-600
Weight	:	1.200 g
Dimensi (P × L × T)	:	250 × 250 × 150 mm
Voltage	:	110 -220 V, 50/60 Hz
Electrical Power	:	100 W



ABBE Refractometer

Merek	:	LZHZXY
Model	:	JK-ARM
Weight	:	2.600 g
Dimensi (P × L × T)	:	100 × 200 × 240 mm
Voltage	:	220 V AC/50 Hz



Mikroskop Binokuler

Merek	:	Optika Microscopes Italy
Model	:	B-159
Weight	:	4.000 g
Standard Configuration	:	Magnifying Glass, Counting Pen
Dimensi (P × L × T)	:	350 × 170 × 210 mm
Voltage	:	External power supply 100/240V, 50/60Hz, output 5V D.C. 500mA



Timbangan Digital

Merek	:	ACIS
Model	:	AD-300i
Weight	:	5.000 g
Pan Size	:	120 × 135 mm
Capacity	:	300 g
Readability	:	0,01 g



Colony Counter

Merek	:	B-ONE
Model	:	BCC 116
Weight	:	4.000 g
Standard Configuration	:	Magnifying Glass, Counting Pen
Dimensi (P × L × T)	:	255 × 210 × 160 mm
Voltage	:	220 VAC/50 Hz
Electrical Power	:	20 W

Shoking Incubator



Merek	:	Shaking Incubator
Model	:	PID
Display	:	LCD
Temp. Range	:	RT +5°C-60°C
Rotating Speed	:	30-400 rpm
Timing Range	:	0-500 hours
Shaking Plate Size	:	260*260 mm
Max. Capacity	:	100 ml *9 or , 50 ml *9 or 250 ml*5
Internal Material	:	Mirror Stainless Steel
External Material	:

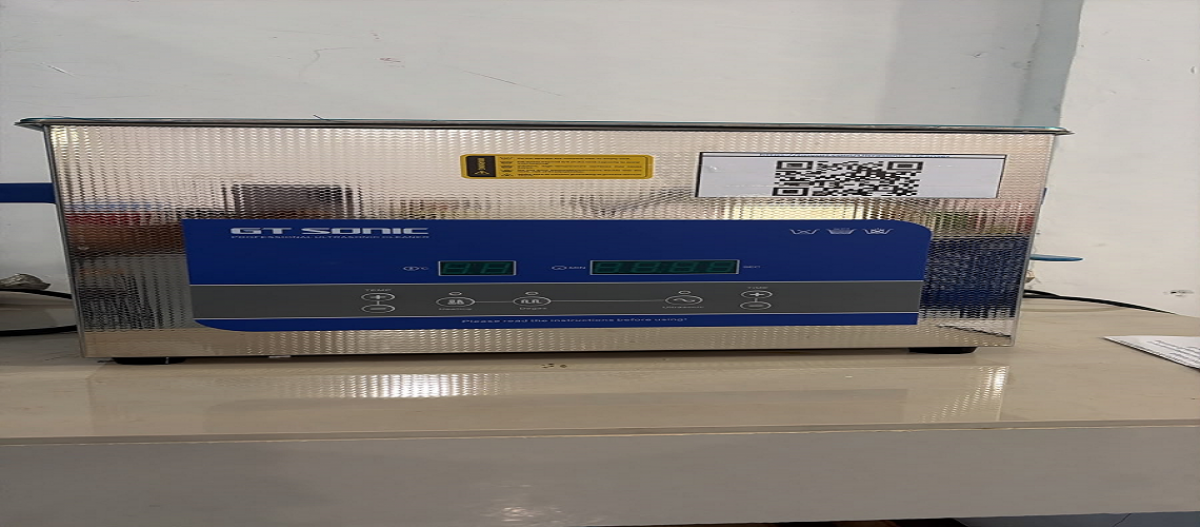

Ultrasonic cleaner

Merek	:	GT SONIC-R20
Overal Size	:	550*330*310mm
Digital Timer	:	1-99 min
Temp. Range	:	RT +5°C-60°C
Tank Capacity	:	20 L
Tank Size	:	500*300*150mm
Temp. Range	:	20-800C
Max. Capacity	:	100 ml *9 or , 50 ml *9 or 250 ml*5
Ultrasonic frequency	:	40KHz

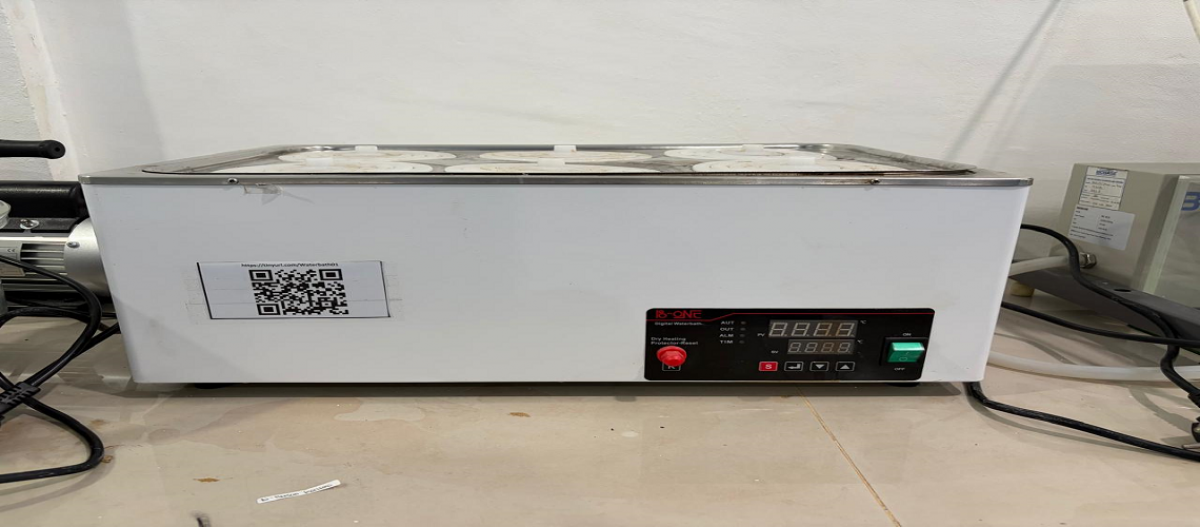

Waterbatch

Merek	:	Waterbath
Capacity	:	18L
Range Temp.	:	+5 ~ 100oC
Timer	:	0 – 9999 min
Sample Hole	:	6 Hole
Volatge	:	220V / 50Hz

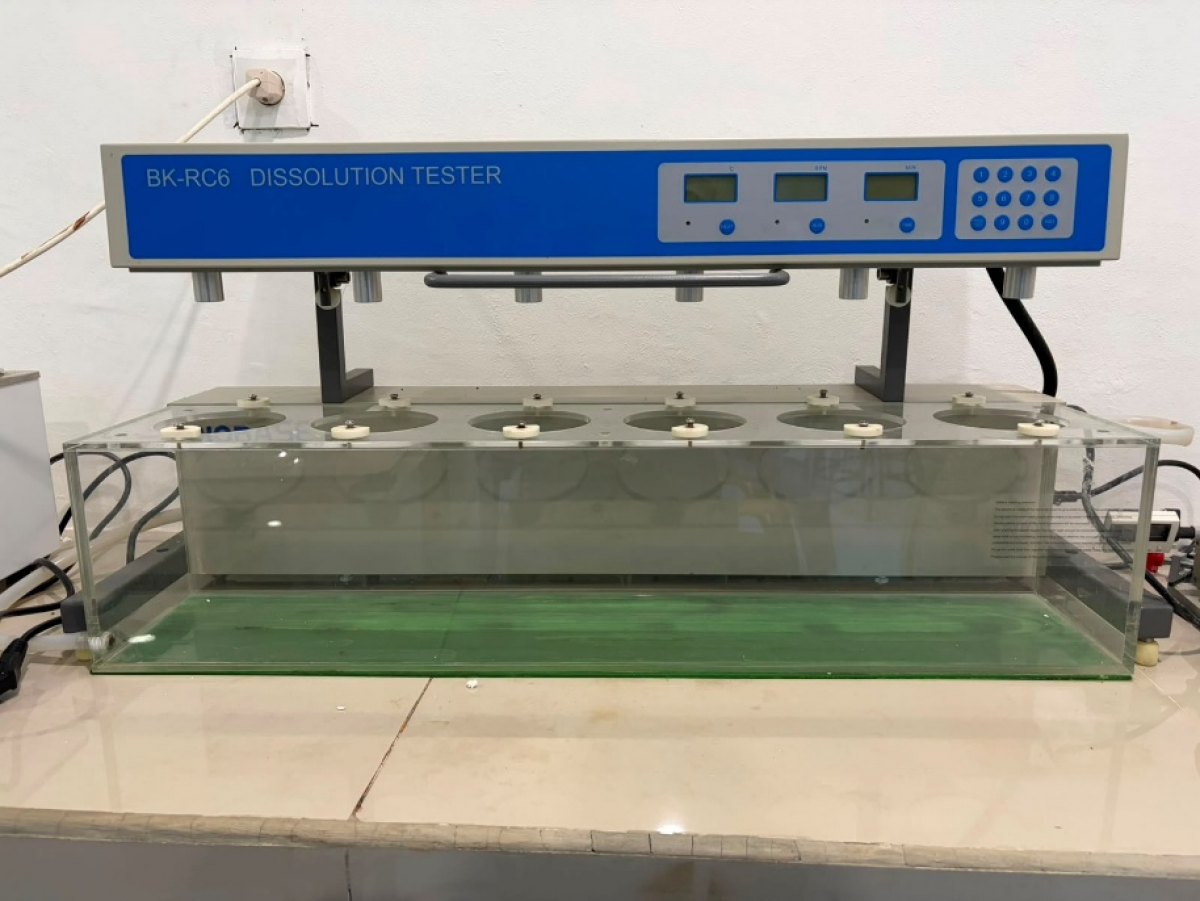

Dissolution Tester

Model	:	Biobase BK-RC6
Speed Range	:	20-200 rpm
Temp. Range	:	RT +45.0 OC
Timing Range	:	1-999 min
Working time	:	>24h
External Size	:	960*320*480
Package Size		1210*440*550

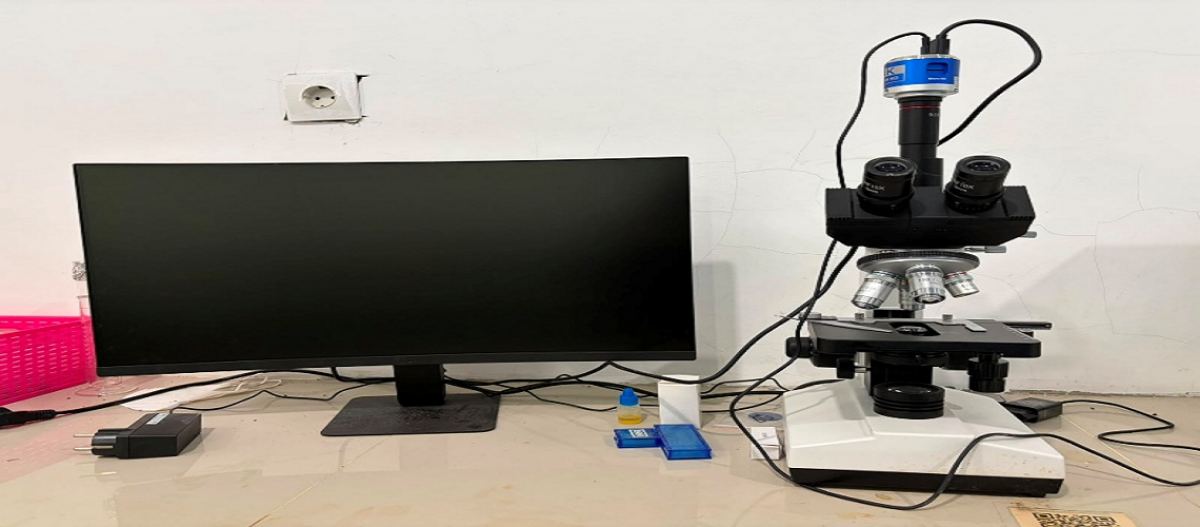

Mikroskop trinokular+Monitor

Model	:
Speed Range	:
Temp. Range	:
Timing Range	:
Working time	:
External Size	:
Package Size

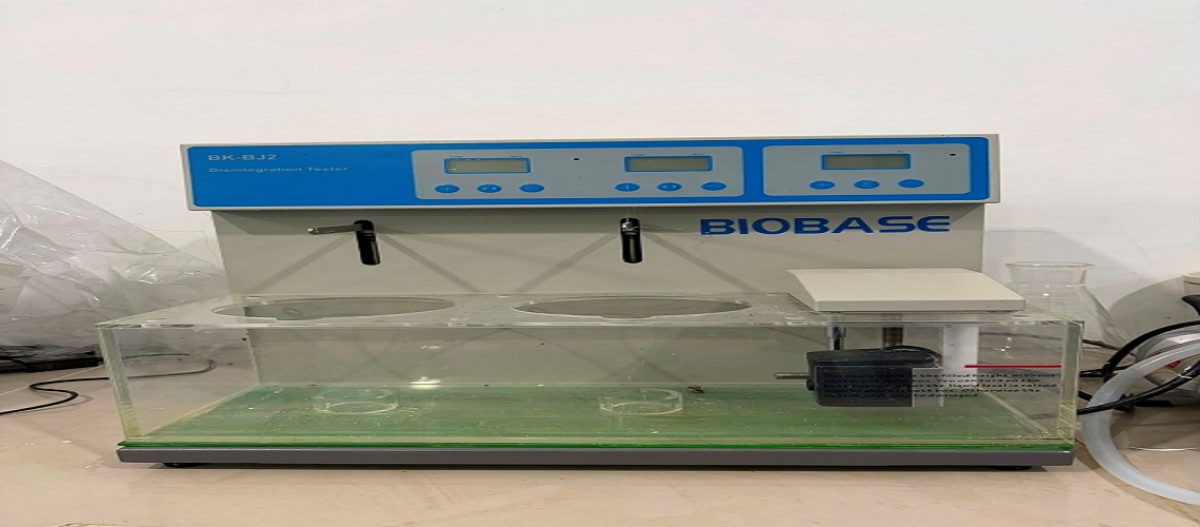

Disintegration Tester

Model	:	BK-BJ2
Basket	:	2 pcs
Beaker Capacity	:	1000 ml
Stroke Height	:	55 ± 1mm
Minimum spacing	:	25±2mm
Mesh size	:	Standar 2mm
Temp. range	:	RT~50oC
Timing Range	:	1~900min
Working TIme	:	>24h





Moisture Analyzer

Model	:	Shimadzu MOC63u
Measurement range	:	0.001 to 100g
Readability	:	0.001g (1mg)
Repeatability	:	0.02g (2mg, 100g sample)
Temperature Range	:	30oC to 200oC (1oC increments)
Heating Technology	:	Halogen Moisture Sensor

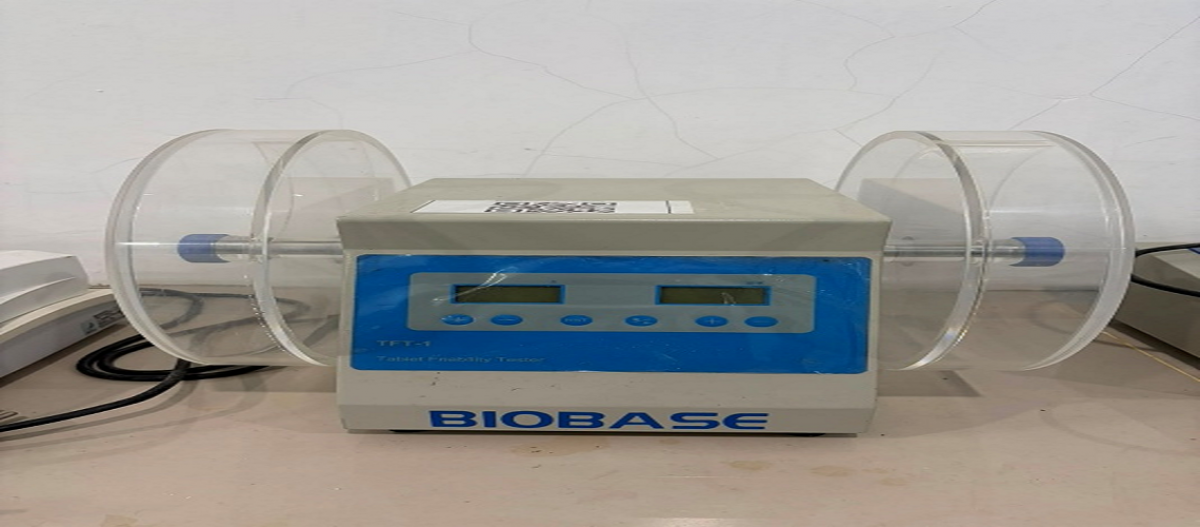

Tablet Friability Tester

Model	:	Biobase TFT-1
Cylinder Number	:	2
Cylinder Radius	:	Ø286
Cylinder Depth	:	39mm
Tablet fall height	:	156mm
Rotating Speed	:	20-100rpm
Rotation Count	:	5-900 turns
External Size (W*D*H)mm	:	370*300*340
Package Size (W*D*H)mm	:	450*410*



Tablet Hardnes Tester

Model	:	THT-1
Test Range	:	2-500N (0.2-50kg)
Resolution	:	0.1N 0.01kg
Probe Procession Range	:	2-20mm
Dimensions (W*D*H)mm	:	280*180*110
Package Size (W*D*H)mm	:	420*305*230

Transdermal difussion meter

Model	:	BK-TP6
Transdermal Cup	:	6pcs
Capacity of Cell	:	15ml (standard)
Temperature Control Range	:	30-40oC
Temperature Control Precision	:	±0.1 oC
Stirring Speed Range	:	100-800rpm/min
Speed Precision	:	± 5%
Packing size	:	420*420*380

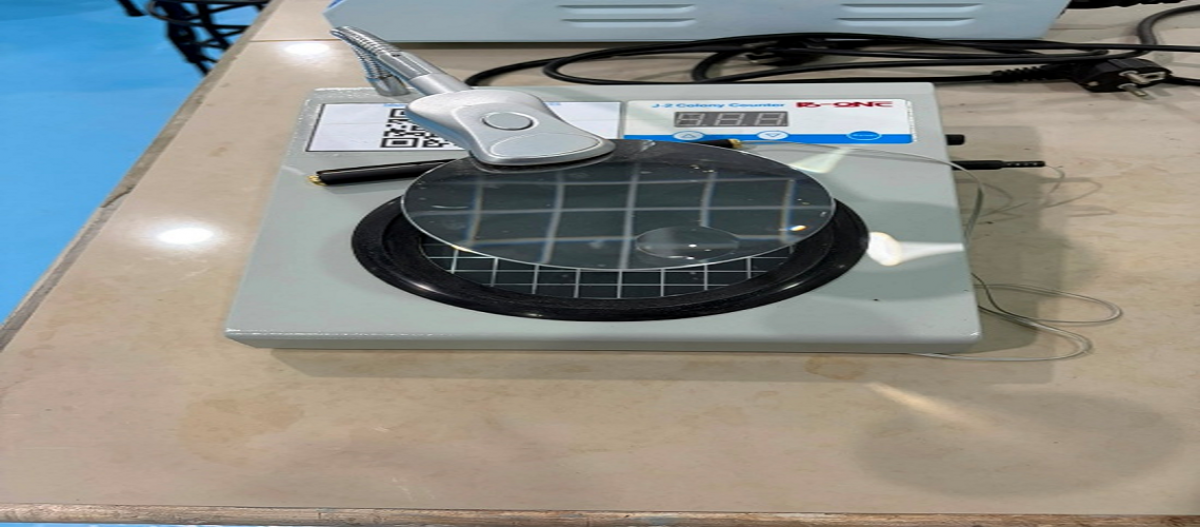

colony counter

Model	:	J-2
Power Rating of Lamp	:	16W
Total Power Consumption	:	20W
Capacity of Counter	:	0-999
Diameter of the Counting Plate	:	115mm
Magnification	:	3-9 Times
External Dimension	:	255 * 210*160 mm
	:

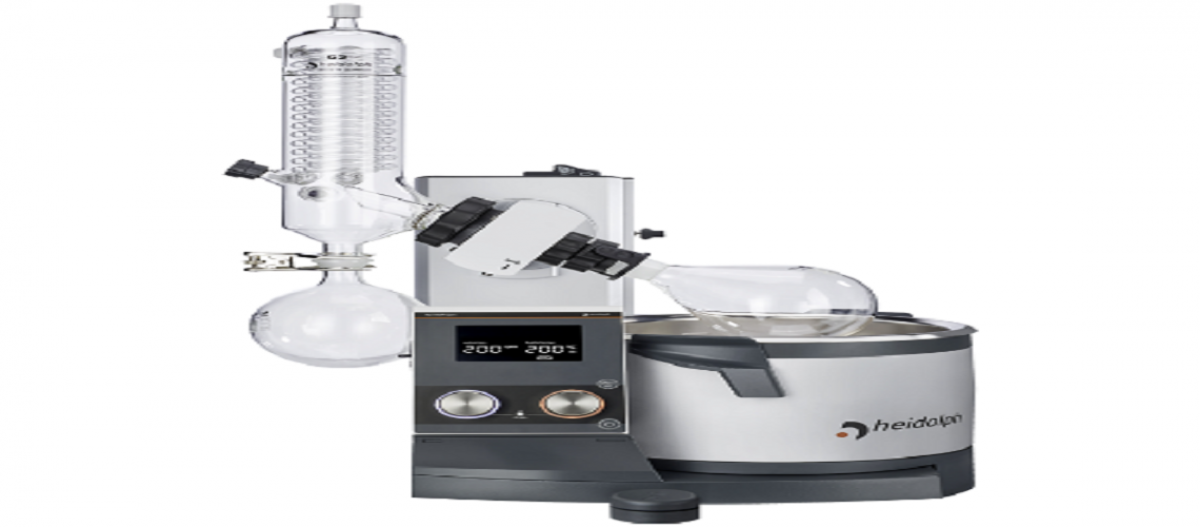

Rotary Evaporator

Model	:	Hei-VAP Core
Dimension ( WxHxD)	:	Variant with motor driven lift & glassware G3: 739 ×845 × 432 mm; Variant with manual lift & glassware G3: 739 × 845 × 487 mm
Weight	:	Variant with motor driven lift: 15 kg | Variant with manual lift: 14,7 kg
Speed Range	:	10 – 280 rpm
Heating power	:	1300 W
vaporation rates (L/h) ΔT* 40 °C (for continuous operation)	:	Toluol 8.5 | Acetone 5.8 | Ethanol 3.5 | Water 1.2
Maximum cooling surface	:	0.22 m2 (depending on glass set)
Heating bath	:	inner Ø: 253 mm, outer Ø: 291 mm | Material: V4Asteel (1.4404) stainless steel X2CrNiMo 17-12-2 | Volume 4.5 L
Temperature range heating bath	:	20 - 100 H2O / 20 - 210 oil
Overtemperature protection	:	cut off at 5 °C difference to set temperature
Overheat protection	:	250 °C
Control accuracy	:	±1
